HYBRID POLYMER COMPOSITE PRODUCTS
REPLACING WOOD, STONE & CONCRETE
Locking non-recyclable plastic into high-density structural infrastructure assets engineered to withstand moisture, termites, and severe mechanical loads for over five decades in agricultural, logistics, and civil projects.
9 HYBRID COMPOSITE PRODUCTS MASTER SPECIFICATION
All GEOWASOL products are manufactured from 100% upcycled multi-layer plastic (MLP) and single-use packaging with zero virgin resin additions, delivering non-degrading performance in heavy industry.
| Product Designation | Upcycled Feedstock Type | Standard Dimensions | Mechanical Load Capacity | Environmental Defense | Target Industry / Sector |
|---|---|---|---|---|---|
| 1. Agro Trellis Post | Post-consumer MLP & pouch films | 4" dia • Up to 30 ft continuous | 39.67 MPa Compressive (ASTM D695) | 100% Termite & Acid Proof | Agriculture |
| 2. Heavy-Duty Farm Fencing | FMCG laminate wrappers & metallized foils | 3"x3" and 4"x4" posts • 6–10 ft | High flexural impact absorption | Zero rot / zero maintenance | Farming & Estates |
| 3. 4-Way Industrial Pallet | MLP & SUP, RDF & Non-recyclable PLA carry bags | 1200 x 1000 x 150 mm | 5,000 kg static / 1,800 kg dynamic | ISPM-15 exempt / chemical resistant | Logistics & Warehousing |
| 4. Euro Standard Pallet | Commercial waste film & mixed polyolefins | 1200 x 800 x 144 mm | 4,000 kg static / 1,500 kg dynamic | Zero splintering / cold-room proof | Cold Chain & Export |
| 5. Composite Eco-Bricks | MLP carry bags + inert mineral fillers | 230 x 115 x 75 mm (Std Modular) | 14.5 MPa Compressive | 0.0% water seepage / damp-proof | Construction Masonry |
| 6. Anti-Skid Floor Tiles | Shredded MLP packaging & mineral matrix | 300 x 300 x 25 mm & 400 x 400 mm | High abrasion resistance Class 4 | Oil, grease & chemical impervious | Industrial Flooring |
| 7. Interlocking Pavers | Multi-layer packaging & industrial laminates | Uni-paver / Zigzag 60mm & 80mm | Heavy axle wheel load certified | Zero efflorescence / freeze-thaw proof | Pavements & Ports |
| 8. Structural Beams & Lumber | Dense MLP composite & thermo-fused core | Custom profiles up to 20 ft lengths | High bending modulus (2,850 MPa) | No warping, splitting, or rotting | Civil Engineering |
| 9. Public Benches & Cots | 100% Upcycled municipal plastic matrix | 5 ft standard municipal park bench | 450 kg distributed occupancy | Vandal-proof & weather-immune | Municipalities & Parks |
PRE & POST HARVEST AGRO-INFRASTRUCTURE
Engineered specifically to solve the crippling failure rates of rotting wood, brittle PVC pipes, and cracking RCC poles in Indian farming.
Hybrid Polymer Composite Trellis Post
4-inch diameter posts extending up to 30 feet (9 meters) in continuous length — double the length of conventional supports. Engineered specifically for high-yield vertical cultivation of black pepper, grapes, dragon fruit, kiwi, apples, and hops.
- Diameter & Length: 4" Diameter • Up to 30 Feet (9m)
- Compressive Strength: 39.67 MPa (ASTM D695 Certified)
- Flexural Strength: 24–30 MPa (ASTM D790 / D7264)
- Flexural Modulus (Stiffness): 2.0–2.5 GPa (Optimal Elastic Recovery)
- Tensile Strength: 9–13 MPa (ASTM D638)
- Lifespan & Warranty: 50+ Years (Zero Decay / Termite-Proof)
- Unit Benchmark: ₹2,000 / 30' Post (No Concreting Needed)
A 10-cent family plot accommodates 80 Trellis posts, yielding a bare minimum recurring income of ₹4,00,000/year (~₹33,000/month) from vertical high-density horticulture.
Heavy-Duty Farm Fencing System
39 MPa high-impact composite fence posts and structural cross-rails designed to secure agricultural lands, plantations, and orchards against wild animal intrusion. Rapid zero-masonry installation completed in hours.
- Material Strength: 39 MPa (Zero Animal Penetration)
- Weather Resistance: Heavy Monsoons, Coastal Salt & Frost Proof
- Installation Speed: Boundary Completed in Hours (No Mortar)
- Global Market Size: Europe: $15.77B (2033) • India: 8% CAGR
- Environmental Moat: 100% Tree Conservation (Zero Timber)
Agriculture Infrastructure Fund (AIF) Alignment for Farmers & FPOs
GEOWASOL Trellis Posts, Pallets, and Farm Fences are fully eligible under the National Agriculture Infra Financing Facility (AIF) as "Community Farming Assets" and "Post-Harvest Management Projects". Eligible farmers, FPOs, and agro-entrepreneurs receive a 3% per annum interest subvention on loans up to ₹2 Crores for a maximum of 7 years.
50+ YEAR HEAVY-DUTY COMPOSITE PALLETS
Replacing splintering wooden pallets and expensive virgin plastic injection units with indestructible circular composite pallets.
Industrial 4-Way Entry Pallet
Engineered for extreme duty in steel mills, automotive logistics, FMCG warehousing, and chemical plants. Handles heavy static loads up to 5,000 kg without buckling.
- Static Load Rating: 5,000 kg (5 Tons)
- Dynamic Load Rating: 1,800 kg
- Trip Life Comparison: 100+ Trips vs 10-15 for Wood
- Hygiene Standards: Zero Bacterial/Moisture Absorption
The Economics of Pallet Pooling & Buyback
Wooden pallets represent a constant operational expense. They splinter, harbor wood-boring insects, absorb chemicals, and break after a dozen journeys.
With a 50+ year lifespan and guaranteed buyback at end-of-life, our pallets reduce long-term logistics packaging costs by over 45%.
- ✓ Pallet Pooling: Available on seasonal lease or pooling models.
- ✓ Export Ready: No heat-treatment or fumigation stamps required (ISPM-15 exempt).
- ✓ 100% Recyclable: Damaged pallets are reground back into new pallets.
Upcycled from Multi-Layer Plastics, Single-Use Packaging, RDF & Non-Recyclable PLA
We can upcycle and convert not only MLP & SUP (Snack, nuts, popcorn, biscuits, chips, food wrappers and all other crisp packets metallised and nonmetallised & single use plastic) but also RDF & PLA (Refuse-Derived Fuel & Polylactic Acid carry bags — which are non recyclable) into Hybrid Polymer Composite to make pallets and allied products.
Polylactic Acid (PLA) is a biodegradable thermoplastic polyester derived from renewable resources like corn starch, cassava roots, or sugarcane. While commercially branded as an eco-friendly carry bag material, PLA is non-recyclable in standard municipal recycling facilities because it requires industrial composting units and ruins standard plastic recycling batches. GEOWASOL's patented thermo-mechanical process successfully blends PLA with industrial RDF and metallized MLP, engineering ultra-resilient composite pallets with zero splintering and a 50+ year operational lifespan.
COMPOSITE BRICKS, ANTI-SKID TILES & PAVERS
Replacing red clay bricks and sand-intensive concrete blocks with indestructible, zero-absorption composite masonry.
Composite Eco-Bricks
Lightweight, high-strength building bricks that eliminate mortar cracking, prevent dampness seepage, and insulate against exterior heat.
- Water Absorption: 0.0%
- Thermal Insulation: Superior to Clay Bricks
- Topsoil Saved: 100% Free of Clay/Soil

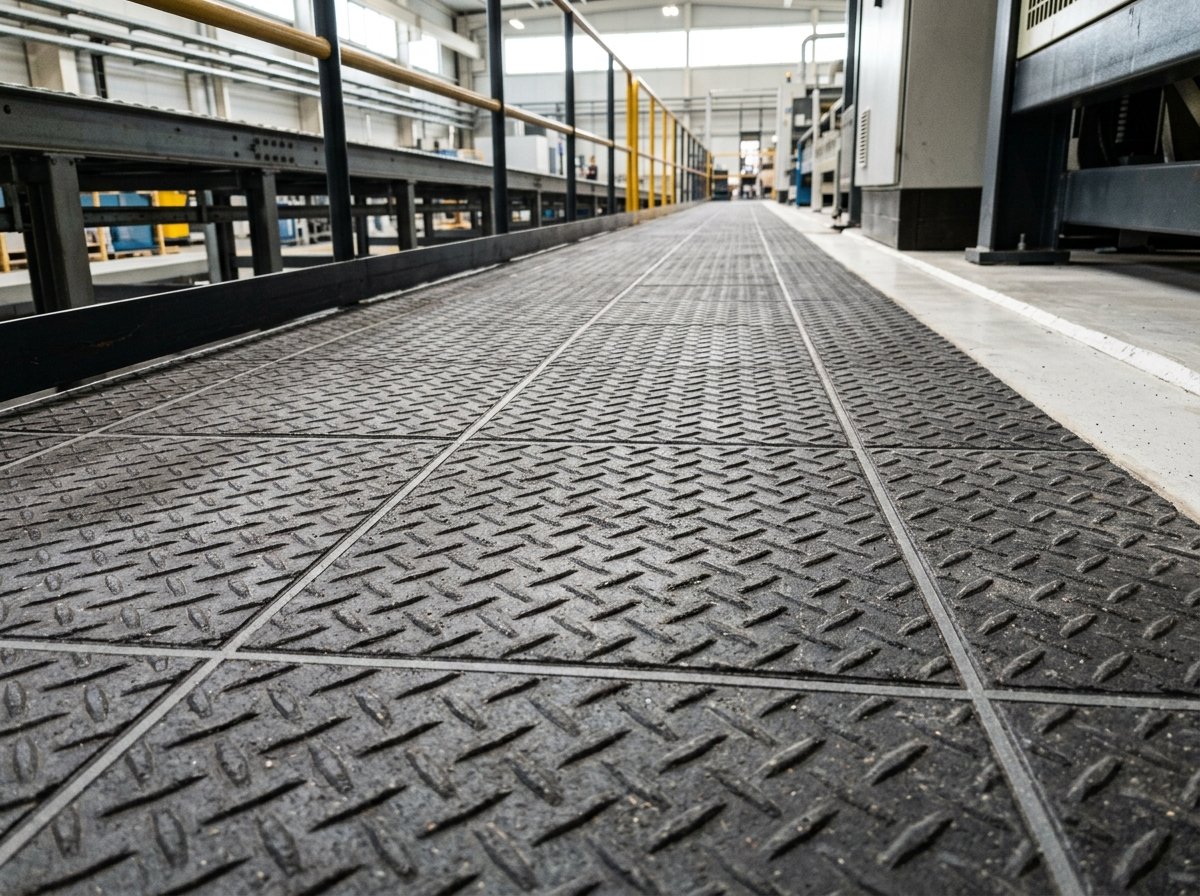

Anti-Skid Heavy-Duty Tiles
Textured floor tiles engineered with high-traction surface geometry for industrial wet areas, factory pathways, public promenades, and commercial ramps.
- Surface Texture: High-Traction Anti-Skid Pattern
- Chemical Spills: Impervious to Oils & Industrial Acids
- Impact Resistance: Will Not Crack Under Heavy Tool Drops

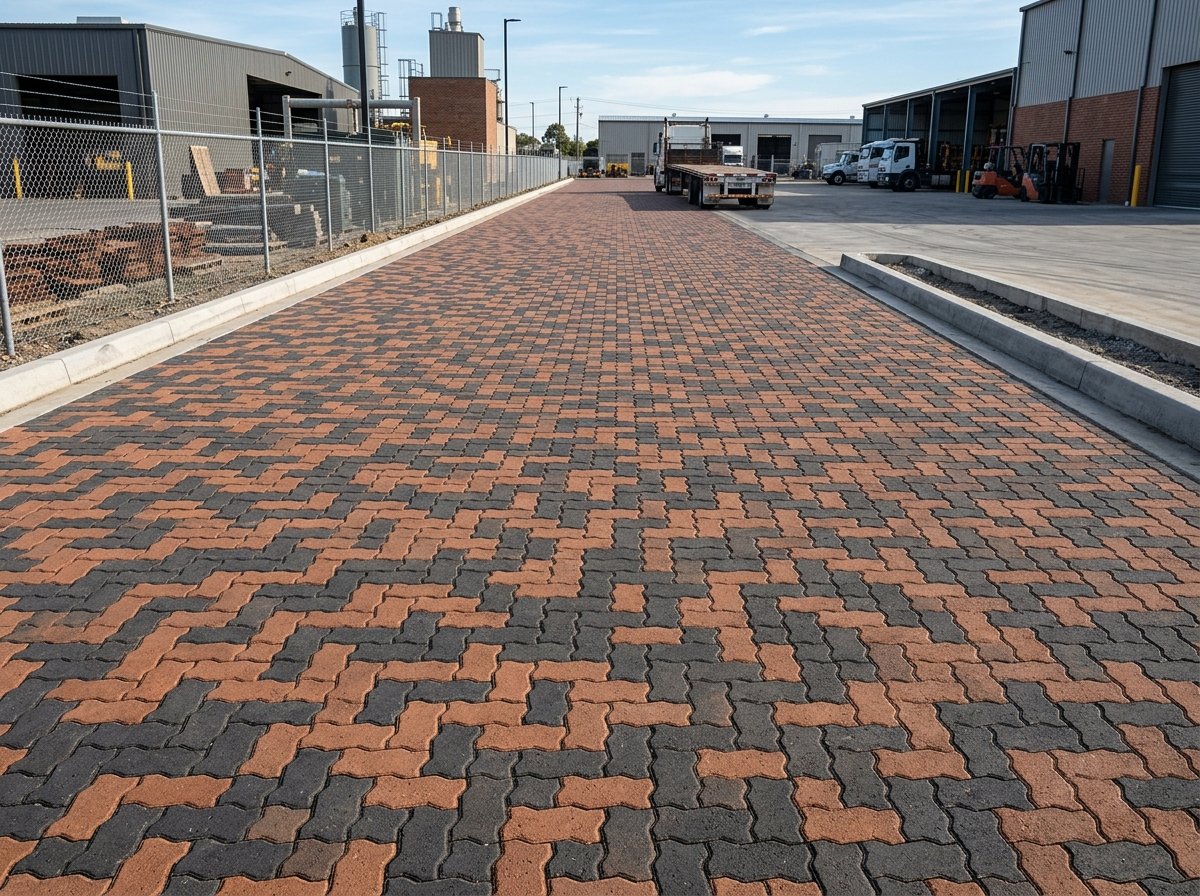

Interlocking Paver Blocks
Heavy-duty interlocking blocks for port container yards, parking zones, and municipal walkways. Outlasts concrete pavers by decades with zero spalling.
- Load Rating: Suitable for Heavy Vehicles & Forklifts
- Efflorescence: Zero White Salt Stains
- Installation: Rapid Interlocking Placement

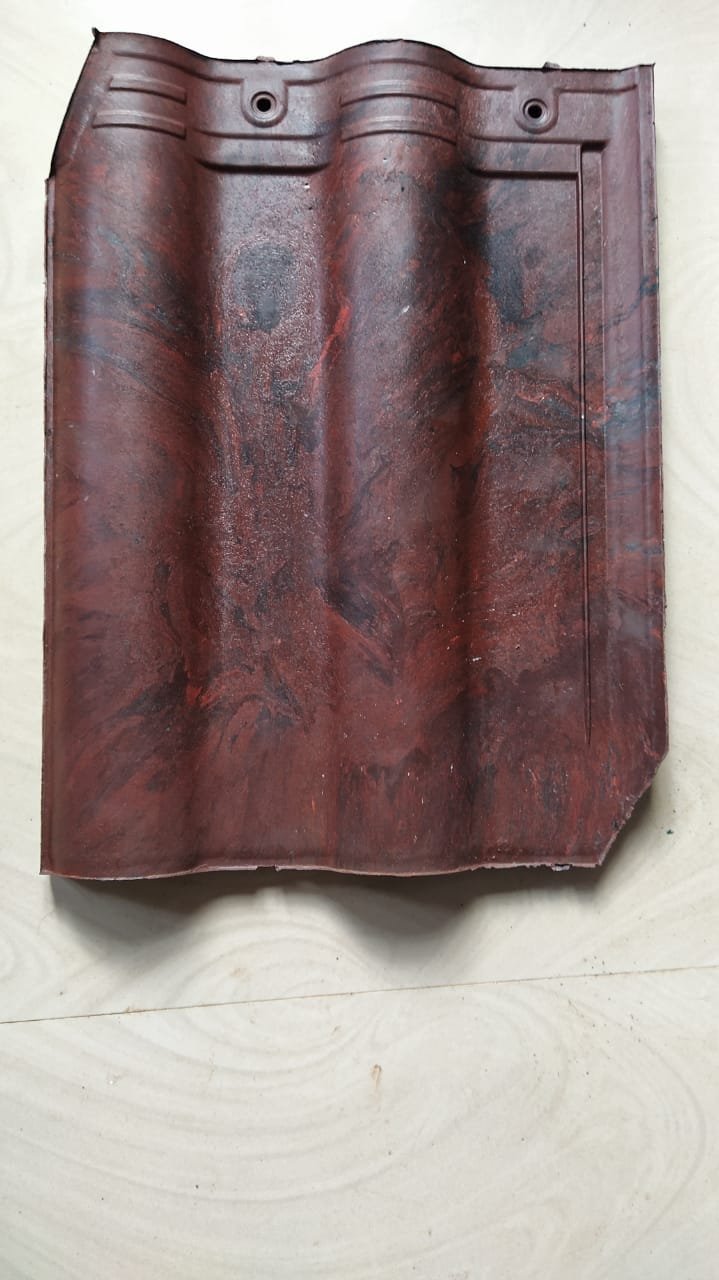

Registered Composite Roof Tiles
Official design-registered hybrid polymer roofing tiles (Govt. of India Class 25-01). Replaces fragile clay Mangalore tiles and asbestos sheets with a heat-dissipating, unbreakable shield.
- IP Registration: Design No: 378014-001
- Heat Dissipation: UV & Thermal Dissipating Composite
- Impact Rating: 100% Unbreakable vs Falling Tree Branches
- Water Absorption: 0.0% (Zero Leakage / Zero Algae)

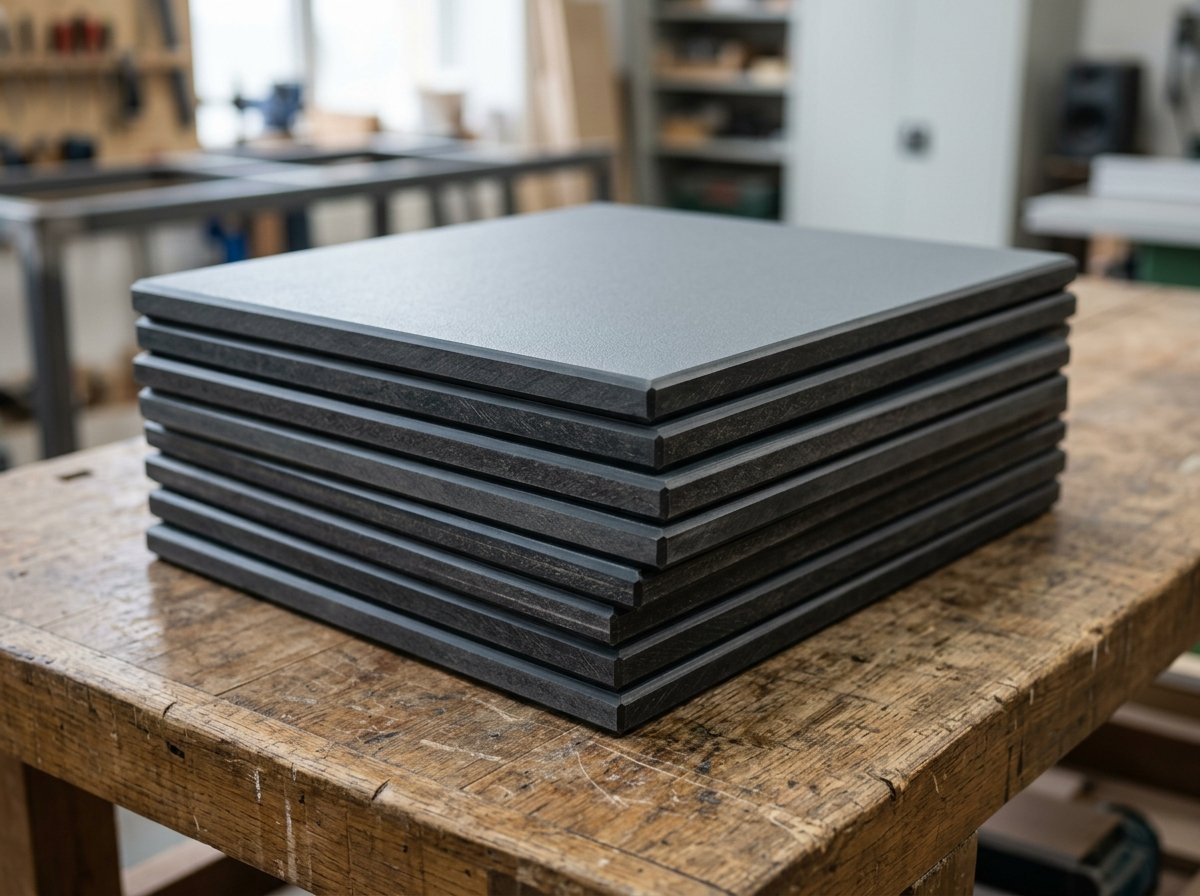

Continuous Eco-Sheet / Plywood Replacement Board
Continuous-extrusion hybrid polymer composite sheet engineered to permanently replace commercial plywood, MDF, and particle board in concrete formwork, wall partitions, wet-area cabinetry, and transport linings. Eliminates the sagging, bending, and brittleness of conventional hot-pressed MLP sheets.
- Flexural Modulus: 2,000 – 2,500 MPa (Zero Sagging / No Creep)
- Water Absorption: 0.0% (100% Waterproof / Zero Swelling)
- Screw Retention: High Edge-Holding (No Edge Snapping)
- Timber Conserved: 100% Forest-Free Circular Core
HARSH ENVIRONMENTAL & STRESS TESTING BENCHMARKS
GEOWASOL hybrid polymer composites undergo standardized mechanical, chemical, and accelerated weathering protocols to ensure 50+ year performance in extreme Indian field environments.
Accelerated UV Radiation
Subjected to 1,000+ hours of continuous intense ultraviolet B exposure without chalking, color bleaching, or surface embrittlement.
Zero Water Absorption
Continuous 24-hour full immersion yields less than 0.02% water uptake. Total immunity to fungal rot, swelling, mold, or microbial decay.
Chemical & Acid Immunity
Tested against 10% sulfuric acid, caustic alkalis, diesel fuels, saline groundwater, and termite attacks with zero material corrosion.
Thermal Freeze-Thaw Shock
Withstands cyclic temperature shifts between -15°C and +70°C. Non-porous structure eliminates freeze-thaw spalling and cracking.
50-YEAR TOTAL COST OF OWNERSHIP & 100% BUYBACK
While conventional materials degrade and become disposal liabilities, GEOWASOL composite assets provide ongoing balance sheet salvage value.
Treated Hardwood / Sal Timber
- ❌ Lifespan: 3 to 7 years in outdoor contact
- ❌ Maintenance: Periodic creosote / chemical coats
- ❌ Failure Mode: Termite rot, fungal decay, splitting
- ❌ End of Life: Zero value; toxic incineration hazard
- ❌ Total 10-Yr Cost: 320% of initial purchase price
Precast RCC Concrete
- ❌ Lifespan: 8 to 15 years before rebar corrosion
- ❌ Weight & Freight: Extremely heavy; high transit breakage
- ❌ Failure Mode: Rebar spalling, brittle impact fracture
- ❌ End of Life: Landfill demolition rubble costs
- ❌ Total 10-Yr Cost: 210% including transit replacement
Hybrid Polymer Composite
- ✅ Lifespan: 50+ years continuous outdoor life
- ✅ Maintenance: Zero painting, treating or inspection
- ✅ Failure Mode: Ductile resilience; no brittle snapping
- ✅ End of Life: Guaranteed 100% buyback by GEOWASOL
- ✅ Total 10-Yr Cost: Only 55% of wooden alternative
GEOWASOL 100% Guaranteed Asset Buyback Policy
Every pallet, trellis post, and paver we manufacture can be returned to our Kerala production facility at end-of-service or project decommissioning. We repurchase the material at prevailing polymer salvage value for 100% clean thermo-mechanical re-fusion into new assets.
REQUEST PRODUCT SPECIFICATIONS & BULK QUOTES
We supply commercial enterprises, agricultural cooperatives, logistics fleets, and infrastructure contractors across India. Submit your required product type and estimated volume for commercial rates.
